A | - | Electronic rear differential |
B | - | Open rear differential |
1 | - | Rear driveshaft |
2 | - | Electronic rear differential |
3 | - | RH rear drive halfshaft |
4 | - | Actuator (locking) motor assembly |
5 | - | LH rear drive halfshaft |
6 | - | Rear differential |

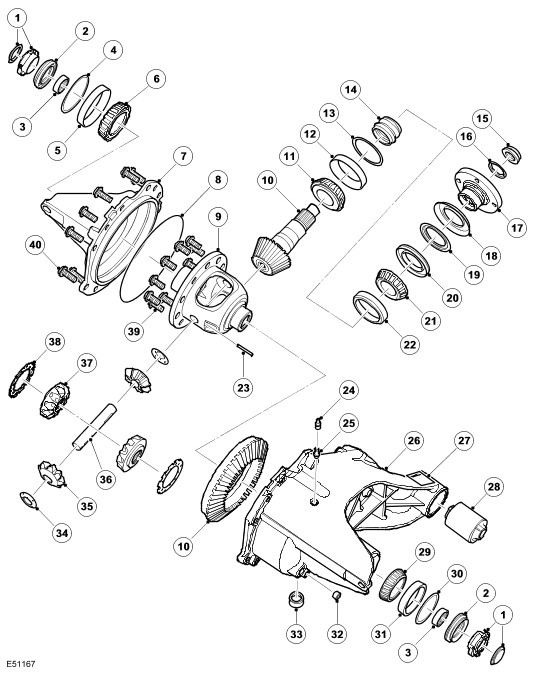

1 | - | Cap |
2 | - | Seal |
3 | - | Bearing assembly, without race |
4 | - | Bearing pre-load spacer |
5 | - | Bearing |
6 | - | Roller bearing cup |
7 | - | Cover |
8 | - | Seal |
9 | - | Differential carrier |
10 | - | Gear and pinion assembly |
11 | - | Bearing |
12 | - | Roller bearing cup |
13 | - | Shim |
14 | - | Collapsible spacer |
15 | - | Pinion nut |
16 | - | Retainer |
17 | - | Flange |
18 | - | Outer deflector |
19 | - | Inner deflector |
20 | - | Oil seal |
21 | - | Bearing |
22 | - | Roller bearing cup |
23 | - | Roll pin |
24 | - | Breather cap |
25 | - | Breather |
26 | - | Case |
27 | - | Data location |
28 | - | Mounting bush |
29 | - | Bearing |
30 | - | Bearing pre-load spacer |
31 | - | Roller bearing cup |
32 | - | Plug |
33 | - | Drain plug |
34 | - | Thrust washer |
35 | - | Planet gears |
36 | - | Crosspin shaft |
37 | - | Sunwheel |
38 | - | Thrust washer |
39 | - | Bolt, 10 of |
40 | Bolt, 12 of |

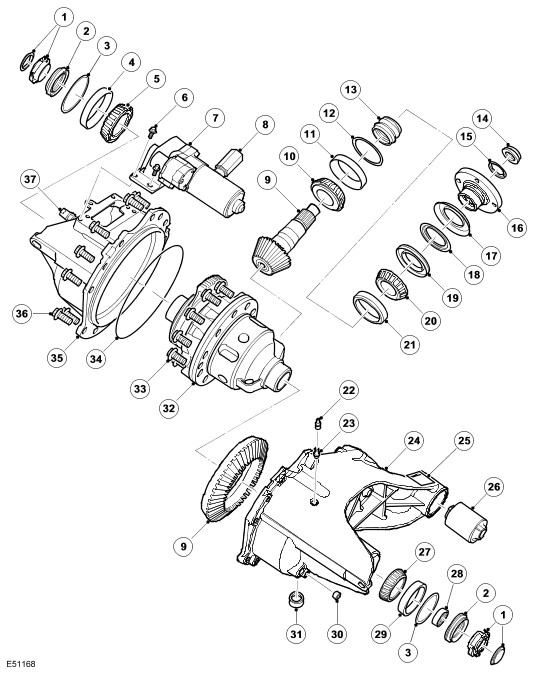

1 | - | Cap |
2 | - | O ring |
3 | - | Bearing pre-load spacer |
4 | - | Bearing |
5 | - | Bearing cup |
6 | - | Bolt, 4 of |
7 | - | Housing and motor assembly |
8 | - | Damper |
9 | - | Gear and pinion assembly |
10 | - | Bearing |
11 | - | Bearing cup |
12 | - | Shim |
13 | - | Collapsible spacer |
14 | - | Pinion nut |
15 | - | Retainer |
16 | - | Flange |
17 | - | Deflector, outer |
18 | - | Deflector, inner |
19 | - | Seal |
20 | - | Bearing |
21 | - | Bearing cup |
22 | - | Breather cap |
23 | - | Breather |
24 | - | Case |
25 | - | Data location |
26 | - | Mounting bush |
27 | - | Bearing |
28 | - | Bearing assembly without race |
29 | - | Bearing cup |
30 | - | Filler plug |
31 | - | Drain plug |
32 | - | Electronic differential assembly |
33 | - | Bolt, 10 of |
34 | - | O ring |
35 | - | Cover |
36 | - | Bolt, 12 of |
37 | - | Temperature sensor |

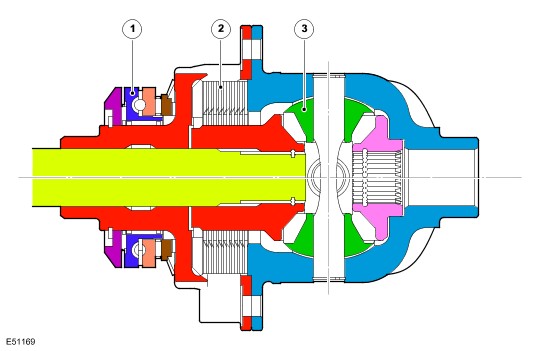

1 | - | Actuator |
2 | - | Clutch pack |
3 | - | Differential |

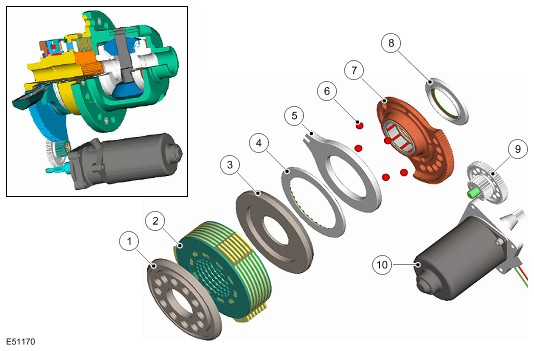

1 | - | Pressure disc |
2 | - | Clutch plate assembly |
3 | - | Pressure disc |
4 | - | Thrust race |
5 | - | Output actuator |
6 | - | Actuator balls |
7 | - | Input actuator |
8 | - | Bearing pre-load spacer |
9 | - | Reduction gearset |
10 | - | Actuator motor |

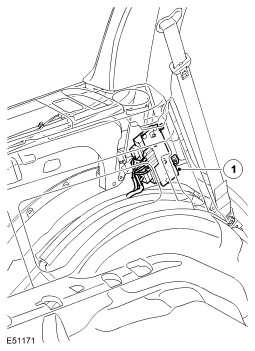

1 | - | Electronic rear differential control module |
Pin No. | Description | Input/output |
---|---|---|
1 | Not used | - |
2 | CAN bus low | Input/output |
3 | CAN bus high | Input/output |
4 | Not used | - |
5 | CAN bus high | Input/output |
6 | CAN bus low | Input/output |
Pin No. | Description | Input/output |
---|---|---|
1 | Not used | - |
2 | Not used | - |
3 | Ground | - |
4 | Ignition feed | Input |
5 | Not used | - |
6 | Ground | - |
7 | Battery feed | Input |
8 | Battery feed | Input |
Pin No. | Description | Input/output |
---|---|---|
1 | +ve for actuator Hall sensor | Input |
2 | Not used | - |
3 | Actuator motor | Output |
4 | Hall sensor - Signal A | Input |
5 | Not used | - |
6 | Not used | - |
7 | Hall sensor - Signal B | Input |
8 | Differential oil temperature sensor | Input |
9 | Not used | - |
10 | Ground - Hall sensor | - |
11 | Differential oil temperature sensor | Output |
12 | Actuator motor | Input |
13 | Motor temperature sensor | Output |
14 | Not used | - |
15 | Not used | - |
16 | Motor temperature sensor | Input |
17 | Motor brake solenoid | Output |
18 | Motor brake solenoid | Input |
Message | Description | Chime |
---|---|---|
'TRANSMISSION OVERHEAT' 'SLOW DOWN' | Rear differential temperature has reached or is approaching the overheat threshold. | None |
'TRANSMISSION FAULT' 'TRACTION REDUCED' | Transfer box control module has stopped transmitting CAN bus messages. Defaults to open centre differential. Message also displayed when fault occurs with electronic rear differential. | None |
'TRANSMISSION FAULT' 'STOP SAFELY' | Fault has occurred with electronic rear differential. Stop vehicle at earliest opportunity. | Single |

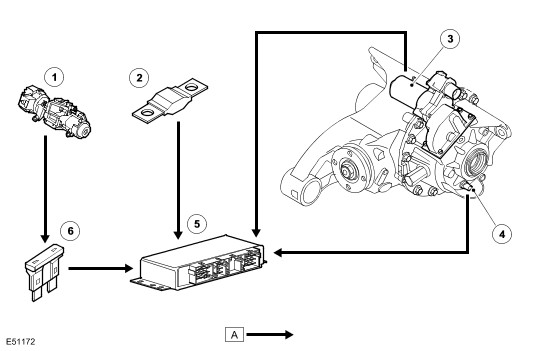

A = Hardwired |
1 | - | Ignition switch |
2 | - | Fusible link (battery) |
3 | - | Actuator motor |
4 | - | Oil temperature sensor |
5 | - | Electronic rear differential control module |
6 | - | Fuse (ignition) |
